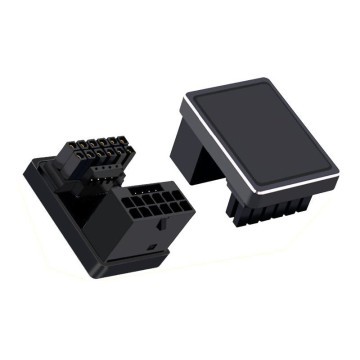

ATX 3.0 PCIe 5.0 600W 12VHPWR 16 Pin 180 Degree Angled Adapter

NEW premium ATX 3.0 PCIe 5.0 600W 12VHPWR 16-pin 180-degree angled power adapter features special low-profile 12VHPWR connector, premium aluminum shell with a total thickness of 8mm only!

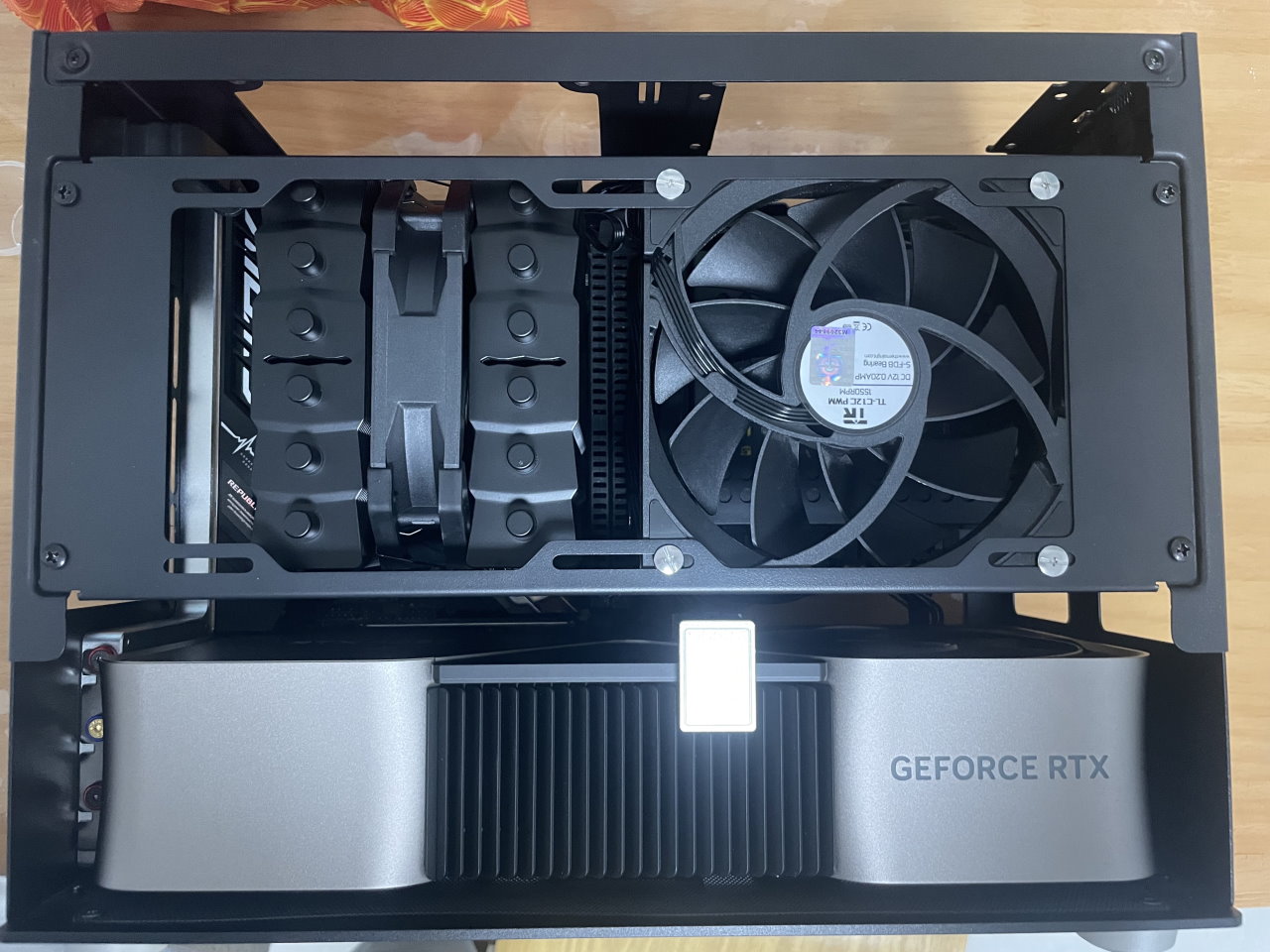

The 12VHPWR connector on many GPUs are indented. Our 180-degree angled adapter will not even protrude at all from your graphic card in many cases.

The adapter is made with top-quality PCB and aluminum shell housing for best performance and cooling and supports full 600W.

This adapter is compatible with all GPUs featuring a 12VHPWR or 12V-2X6 power port, including the RTX 50, RTX 40, and RTX 30 series

Adapter Type

• 12VHPWR Adapter (12+4pin)

Connectors

• 12VHPWR (Male) to 12VHPWR (Female)

Dimension

• 30mm x 21mm

Connector Distance

• 10mm (the spacing between the two connectors)

Adapter Types (examples)

• Type-A
• Type-B
• Type A + Type B (one piece each)

Adapter Colors

• Black
• Silver

GPU Model

• Suitable for GPUs with the backplate distance to the 12VVHPWR within 10mm.
• This adapter is compatible with all GPUs featuring a 12VHPWR or 12V-2X6 power port, including the RTX 50, RTX 40, and RTX 30 series.

Alternative Product Names

• 12VHPWR 180 Degree PCIe 5.0 Adapter Cable Connector 600W
• 12VHPWR 180 Degree Adapter (Type A)

Main Features

• 12VHPWR 180 Degree Angled Adapter / 12VHPWR GPU Power Bridge
• Premium newer extended connectors for high-current-system (HCS) rated 160°C

• Low Profile Design with Special 12VHPWR Connector (8mm only!)
• Support Full 600W Mode
• Top-Quality PCB and Aluminum Shell Housing
