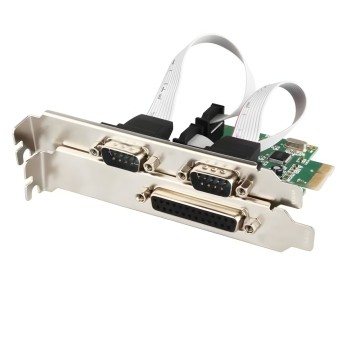

Combo 2 Port DB9 Serial 1 Port DB25 Parallel PCIe Controller Card

Combo 2-port DB-9 Serial (RS-232) and 1-port DB-25 Parallel Printer (LPT1) PCI-e Controller Card,WCH382 Chipset,Support Low Profile Bracket

Specifacation

• Fully Compliant with PCI-Express Base Specification, Revision 1.0a
• PCIe Multi Function Peripheral Controller with x1 Lane Interface
• Support for D1, D2, D3hot and D3cold
• Supports PCIe Power Management
• Serial Ports:
  • 16C450/550/Extended 550 Compatible UARTs
  • Supports RS232, RS485 & RS422 Modes
  • Bi-directional Speeds from 50 bps to 16Mbps/Port
  • Full Serial Modem Control
  • Supports Hardware, Software Flow Control
  • 5, 6, 7, 8 and 9-bit Serial Format Supported
  • Even, Odd, None, Space & Mark Parity Supported
  • Custom BAUD Rates Supported with External Clock or by Programming Internal PLL
  • On Chip 256 Byte Depth FIFOs in Transmit, Receive Path of Each Serial Port
  • Supports Remote Wake-up and Power Management Features
  • Serial Port Transceiver Shutdown Supported
  • Support Slow IrDA on All Serial Ports
• IEEE 1284 Parallel Port:
  • Multi-mode IEEE 1284 Compliant Controller (SPP, PS2, EPP, ECP)
  • Faster Data Rates up to 1.5Mbps for Parallel Port

Software requirement

• Windows 7 32/64-bit
• Vista 32/64-bit
• Windows XP 32/64-bit
• Windows 2000
• Microsoft 2003 Server
• Linux Kernel 2.6.11 & Above
• Mac 10.4 & Above
