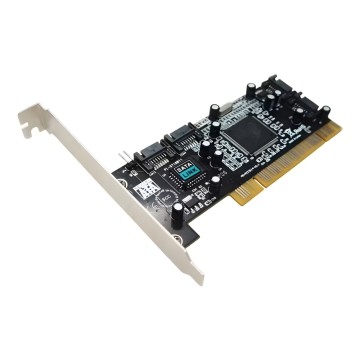

SATA 4x Internal Port Controller Card with SoftRAID Support Low Profile

SATA 4x Internal port Controller Card w/ SoftRAID, Support Low Profile Bracket

Product features

• Four SATA interfaces
• MM-SA3114-4IR supports RAID 0,1,0+1，5 function
• MM-SA3114-4I expansion card without array function
• Application range
• 150MB/sec (S-ATA Rev1.0 theoretical value)

Descriptions

• Supports four hard disks
• Supports RAID mode, including RAID 0、1、0+1、5
• Supports 137 GB capacity hard disk (48-bit LBA) or above
• Peak speed transmission can reach 150 MB per second (1.5 Gbit)
• MM-SA3114-4IR5

System requirement

• MS Windows 98SE/Me/2000/XP/NT 4.0

Package list

• 4-mouth array card
• Driver Disk

Instruction Book

• Two SATA lines (optional)
• Chipset: SIlicom Image 3114
