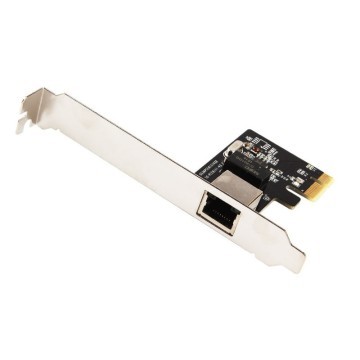

1000M Gigabit Ethernet PCI Express Card 8111F Chipset

Gigabit Ethernet PCI Express Card ，8111F chipset

Features

• Designed to meet PCI Express Specification Revision 1.0a
• Supports 1-Lane 2.5Gbps PCI Express Bus
• Fully Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
• Integrated 10/100/1000 transceiver
• LEDs indicate the status of data transmission
• Wake-on-LAN and remote wake-up support
• Feature full duplex mode that doubles the network connections speed
• Microsoft NDIS5, NDIS6 Checksum Offload (IPv4, IPv6, TCP, UDP) and Segmentation Task-offload (Large send v1 and Large send v2) support

System Requirements

• Windows 8, Windows 7/Vista/XP
• 2000/ME/98SE/Server 2003-2008 32/64-bit
• Linux, MAC OS 10.5 or later, DOS

Package Contents

• 1 x Gigabit Ethernet PCIe Card
• 1 x Driver CD
• 1 x User Manual

Note: Low Profile Bracket can purchase separately.
