USB 2.0 9 Pin Header to USB 3.1 Type E Front Panel Header Converter

USB 2.0 9-Pin Header to USB 3.1 Type-E Front Panel Header Converter

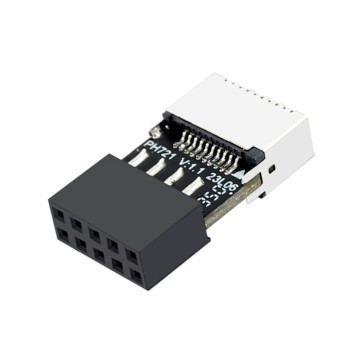

This mini-USB 2.0 to USB 3.1 adapter board is a converter to convert the available USB 2.0 header of a motherboard into a USB 3.1 header. The compact adapter can be inserted directly and requires no additional attachments.

Even the most up-to-date motherboards with AMD AM4 or Intel 2066 sockets are not always equipped with a USB 3.1 header. This converter is the perfect solution to use the USB 3.1 connectors with Type-C or Type-A. The small converter is plugged into a USB 2.0 header that provides two USB 3.0 lanes. Thus, two data lines with 5 Gbps each are available, which are bundled into a USB 3.1 header with 10 Gbit / s. This USB 2.0 to USB 3.1 converter thus provides a full-fledged USB 3.1 port.

Dimensions

• (W) 13mm x (H) 24mm (3g)

Product Code

• USB2H-USB31E

Features

• Converter plug-in for the mainboard
• Fits into any USB 2.0 header (9-Pin)
• Bundling in USB 3.1 with up to 10 Gbps
• Compact shape factor
• Convenient accessory for case with USB 3.1 connector
• USB 3.1 Motherboard Front Panel Header Gen 2 Female to USB 2.0 Internal 9-Pin Male Header Male
• Color: Black
• Speed: 10Gbps
• Current: 5v 900mA

Alternative Product Names

• USB 3.1 Type E Female to USB 2.0 9Pin Male Converter
• USB 3.1 Type E Female to USB 9 Pin Female Internal Male Header Adaptor
• USB 2.0 9 Pin Header to USB 3.1 Type E Header Converter Cable
