Polytetrafluoroethylene F4 PTFE Tubing Type L 1L to 30L 5 Colors

SKU: PTFE-TP-L  |  Brand / Compatible with: MODDIY
$0.16
Availability:
In Stock
(Usually ships within 24 hours)
Min Purchase:
5 unit(s)
*Color:
Size:

Product Description

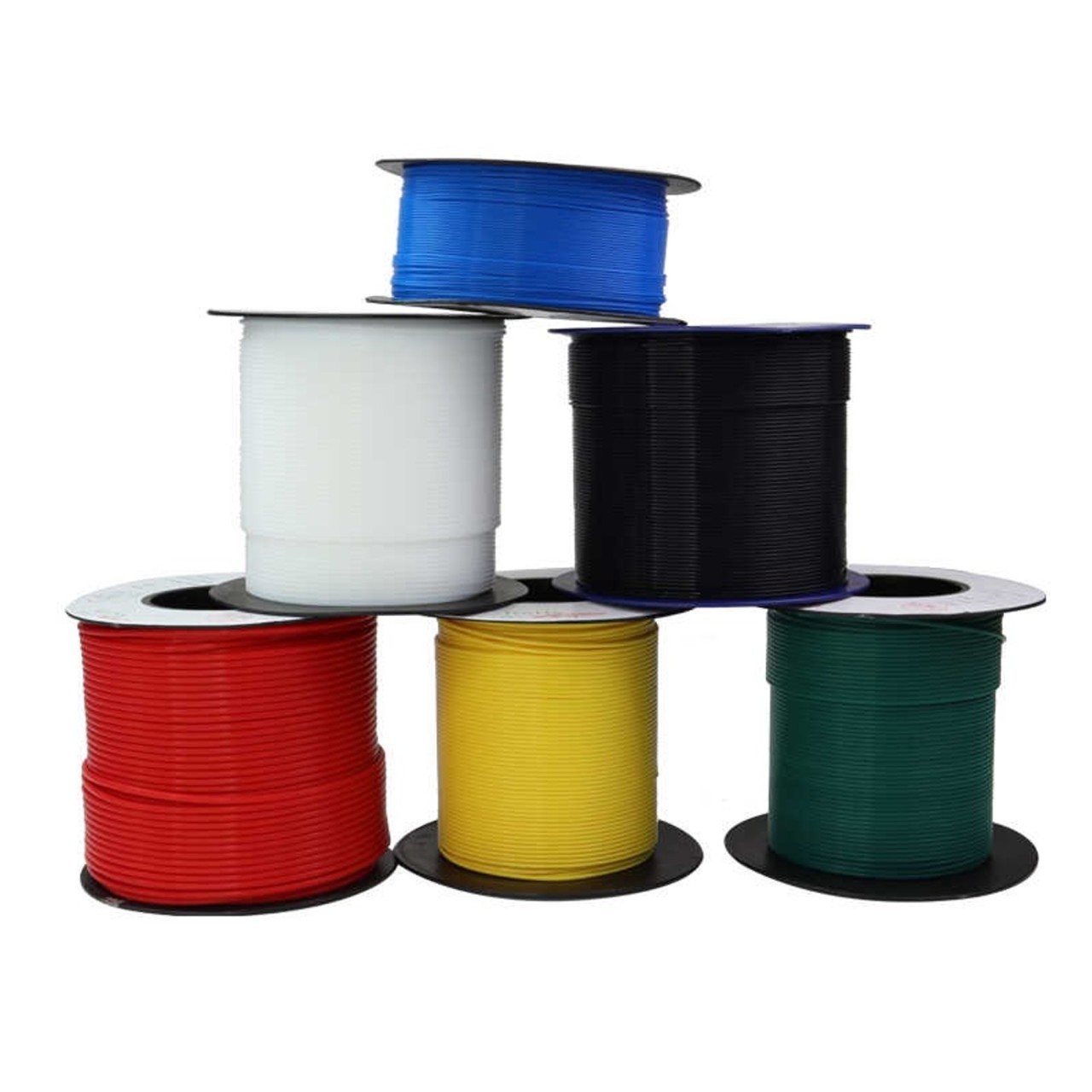

High Quality F4 PTFE Tubing Type-L (5 Colors)

F4 PTFE Tubing (PTFE = polytetrafluoroethylene) provides the ultimate in lubricity, high temperature use, chemical resistance, biocompatibility, and precision extruded tolerances.

  • Excellent Lubricity - Lowest coefficient of friction of any polymer
  • Working temperature range 327° C to –270° C
  • Chemically Resistant (all common solvents, acids and bases)
  • F4 PTFE tubing is chemically Inert
  • Low extractables
  • Excellent Dielectric Insulation Properties

Color

  • Black
  • Blue
  • Red
  • Yellow
  • Transparent

Size (Type-L)

  • 1L (7.46mm ID x 8.06mm OD)
  • 2L (6.88mm ID x 7.28mm OD)
  • 3L (5.94mm ID x 6.54mm OD)
  • 4L (5.28mm ID x 5.88mm OD)
  • 5L (4.72mm ID x 5.32mm OD)
  • 6L (4.22mm ID x 4.72mm OD)
  • 7L (3.76mm ID x 4.16mm OD)
  • 8L (3.38mm ID x 3.78mm OD)
  • 9L (3.00mm ID x 3.40mm OD)
  • 10L (2.69mm ID x 3.09mm OD)
  • 11L (2.41mm ID x 2.81mm OD)
  • 12L (2.16mm ID x 2.56mm OD)
  • 13L (1.93mm ID x 2.33mm OD)
  • 14L (1.68mm ID x 2.08mm OD)
  • 15L (1.50mm ID x 1.80mm OD)
  • 16L (1.34mm ID x 1.64mm OD)
  • 17L (1.19mm ID x 1.49mm OD)
  • 18L (1.07mm ID x 1.37mm OD)
  • 19L (0.96mm ID x 1.26mm OD)
  • 20L (0.86mm ID x 1.16mm OD)
  • 21L (0.81mm ID x 1.11mm OD)
  • 22L (0.71mm ID x 1.01mm OD)
  • 23L (0.66mm ID x 0.96mm OD)
  • 24L (0.56mm ID x 0.86mm OD)
  • 26L (0.46mm ID x 0.76mm OD)
  • 28L (0.38mm ID x 0.68mm OD)
  • 30L (0.30mm ID x 0.60mm OD)

Unit

  • Sold by the foot (30cm), with MOQ 5 units.
  • Each quantity ordered equals 1 foot in length.
  • For example, if a quantity of 10 is ordered, we will send you a 10-foot length.
