Dual SATA Power Cable for Dell OptiPlex 3020 5040 7020 9020 T1700

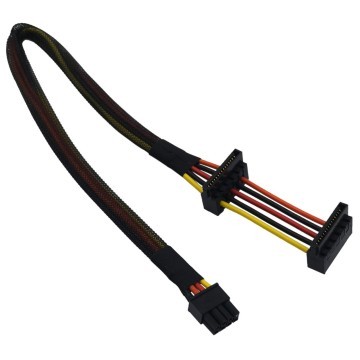

8-Pin to Dual Right-Angle SATA Power Cable for Dell OptiPlex 3020 5040 7020 9020 T1700 (37cm)

SATA Power Cable for Dell OptiPlex Mini 8 Pin port plugs into the motherboard

(NOTE: It is mini 8 pin port, not standard 8 pin port.), 15 Pin SATA port plugs into the hard drive.

Connectors

• Connector A: ATX 12V mini 8-pin (NOTE: not standard 8 pin)
• Connector B: 2x Right-angle SATA 15 pin (compatible with the equipment with SATA port such as: liquid CPU cooler, mechanical HDD and SSD)

Compatibility

• Compatible with DELL OptiPlex series such as 3020/3040/5040/7020/7040/9020 MT, T1700MT

Parameter

• Gauge: 18AWG with braided sleeves for easy cable management, Length (including connectors): 14.5 inches (37cm), between 2 x SATA: 2.36 inches (6cm)
• Product Code: DELL-M8-SATA2

Note

• This cable was only designed for some types of DELL OptiPlex series as listed. Please carefully check the compatible types or contact us if you are not sure about it
• The ATX connector is mini 8 pin, not standard 8 pin.
