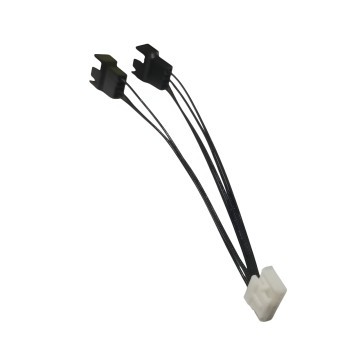

ASUS GPU 7 Pin to Dual 4 Pin PWM 12v Fan Deshroud Adapter Cable

Asus 7-pin GPU outputs to Standard 4 Pin PWM

This is a 7 pin to dual 4 pin adapter for the Asus RTX TUF STRIX ROG series graphics cards, for use when DeShroud Modding (10cm)

This will connect directly into the GPU and provide a 2 fan standard fan output for use with 120mm or 92mm 12v PWM fans like the Noctua series.  Full control can then be provided via the GPU firmware, and can be changed with MSI Afterburner.

7-Pin to Dual 4-Pin GPU PWM fan converter cable, to provide standard 12v fan header outputs to the Asus RTX TUF STRIX ROG series graphics cards with 7-Pin Port.

Free Worldwide Shipping

Asus RTX TUF Deshroud Adapter 7-pin to dual 4-pin GPU PWM fan converter cable

This bespoke adapter converts the 7-Pin fan output to 2x 4-Pin 12v standard PWM fan headers.  Primarily, this cable provides 2 outputs as standard. Importantly, the RPM reading is taken from the primary output only, and both fan speeds are synced to ensure consistent thermal operation.

By using this type of cable, the GPU firmware can control the fan speed, without the need for additional 3rd party software. However, we would recommend fine tuning the fan curve using MSI afterbuner following the completion of a deshroud mod.

A single fan splitter can be added to the secondary output to provide 3 fan outputs, however please ensure the total max fan wattage does not exceed the recommended 12-15Watts.  An additional adapter is required for this.

• Asus RTX 3090 TUF OC 7 PIN GPU PWM FAN Deshroud Adapter Converter Cable
• Asus RTX 3080 TUF OC 7 PIN GPU PWM FAN Deshroud Adapter Converter Cable
• Asus RTX 3070 TUF OC 7 PIN GPU PWM FAN Deshroud Adapter Converter Cable
• Asus RTX 3070 DUAL OC 7 PIN GPU PWM FAN Deshroud Adapter Converter Cable
• Asus RTX 3060 TUF OC 7 PIN GPU PWM FAN Deshroud Adapter Converter Cable
• Asus RTX 2080 Ti STRIX OC 7 PIN GPU PWM FAN Deshroud Adapter Converter Cable
• Asus RTX 2070 Ti / 5070 XT STRIX 7 PIN GPU PWM FAN Deshroud Adapter Converter Cable

Benefits of Deshrouding

• Dual 4 pin PWM Outputs
• Compatible with standard fans (12v)
• Lower Noise
• Better thermals
• Increased Overclocks

Compatibility

• TUF-RTX3090-24G-GAMING
• TUF-RTX3090-O24G-GAMING
• TUF-RTX3080-10G-GAMING
• TUF-RTX3080-O10G-GAMING
• TUF-RTX3070-8G-GAMING
• TUF-RTX3070-O8G-GAMING
• DUAL-RTX3070-8G
• DUAL-RTX3070-O8G
• TUF-RTX3060-12G-GAMING
• TUF-RTX3060-O12G-GAMING
• ROG-STRIX-RTX2080TI-O11G-GAMING
• ROG-STRIX-RTX2080-O8G-GAMING
• ROG-STRIX-RTX2070S-A8G-GAMING
• ROG-STRIX-RX5700-O8G-GAMING
• ROG-STRIX-RX5700XT-O8G-GAMING
