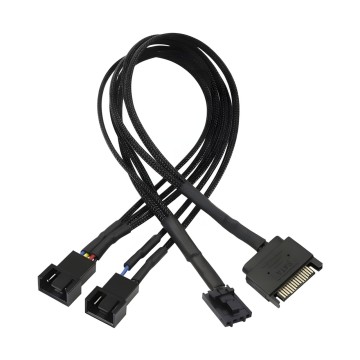

Special 4 Pin to Dual Standard 4 Pin PWM Fan Adapter Cable for Dell

Special 4-Pin to Dual Standard 4-Pin PWM Fan Adapter Cable for Dell, with SATA Powered

Connectors

• Proprietary Dell 4-pin female + SATA powered
• Standard 4-pin PWM fan x 2

Length

• 30cm

Color

• Premium black sleeved

Specifications

• Motherboard Connection: 1x Proprietary Dell latching 4-pin female connector (to plug directly into the Dell T5810 FAN_SYS header for PWM speed control and RPM tracking).
• Power Connection: 1x Standard 15-pin SATA power male connector (to draw 12V power directly from the power supply).
• Fan Output 1: 1x Standard 4-pin ATX male PWM fan header with all 4 pins wired (so the motherboard can read the RPM speed of this primary fan).
• Fan Output 2: 1x Standard 4-pin ATX male PWM fan header with 3 pins wired (skipping the RPM tachometer wire so it does not conflict with Fan 1 but still receiving the PWM speed signal).

Compatibility

• This cable is compatible with Dell models using the Dell proprietary 4-pin header (e.g. Dell T5810 FAN_SYS header)

Product Code

• DELL-4P-D4P-SATA
