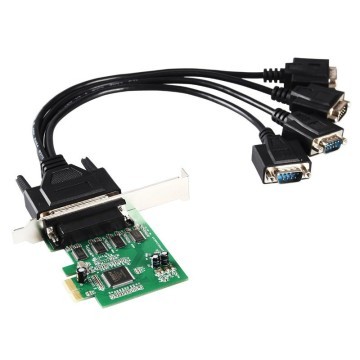

4 Serial Port PCI Express Controller Card with Fan Out Cable (MCS9904)

SKU: IO-PCE9904-PR4S  |  Brand / Compatible with: MODDIY
4 Serial Port PCI Express Controller Card with Fan Out Cable (MCS9904)
  • 4 Serial Port PCI Express Controller Card with Fan Out Cable (MCS9904)
  • 4 Serial Port PCI Express Controller Card with Fan Out Cable (MCS9904)
  • 4 Serial Port PCI Express Controller Card with Fan Out Cable (MCS9904)
  • 4 Serial Port PCI Express Controller Card with Fan Out Cable (MCS9904)
  • 4 Serial Port PCI Express Controller Card with Fan Out Cable (MCS9904)
$69.99
Availability:
In Stock
(Usually ships within 24 hours)

Product Description

MCS9904 Chipset,4 serial port PCI Express controller card with fan out cable,support low profile bracket

Features

1). PCI-Express

1.PCI-Express Multi Function Peripheral controller with x1 Lane Interface
2.Fully compliant with PCI Express Base Specification, Revision 1.0a
3.Support PCI-Express Power Management
NOTES: Please note some sections of the manual are only applicatable for the production that have such functions.

2). Serial Port

. Four 16c450/550/Extended 550 compatible UARTs
. Supports RS232 modes
. Bi-directional speeds from 50 bps to 16Mbps/Port
. Full Serial modem Control
. Supports Hardware, Software flow control
. 5,6,7,8 and 9-bit Serial format support
. Even,Odd,None,space & Mark parity supported
. Custom BAUD Rates supported with external clock or by programming internal PLL
. On Chip 256 Byte depth FIFOs in Transmit, Receive path of each Serial Port
. Supports remote wakeup and power management features
. Serial Port transceiver shutdown support
. Support Slow IrDA on all Serial Ports

Package Contents

1. 1 x PCI Express Multi I/O Card
2. 1 x Driver CD
3. 1 x User manual
4. 1 x Low Profile Bracke
5. 1 x Fan Out Cable

Software Support

. DOS/Windows98/98e/ME
. Windows 32bit 2000/XP/2003 Server/Vista/7 & Windows 64bit XP/2003 Server/Vista/7/8
. Linux Kernel2.6.11& above
. MAC 10.4 & above
