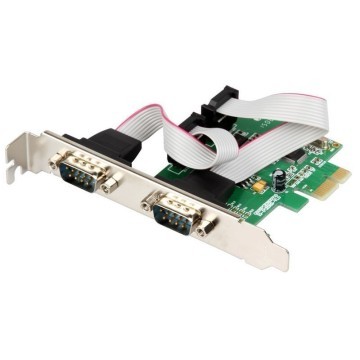

2 Port DB9 Serial RS232 PCIe Controller Card WCH382 Chipset

2-port DB-9 Serial (RS-232) PCI-e Controller Card,WCH382 Chipset，Support Low Profile Bracket

Specifacation

• WCH382 Chipset
• Fully Compliant with PCI-Express Base Specification, Revision 1.0a
• PCIe Multi Function Peripheral Controller with x1 Lane Interface
• Support for D1, D2, D3hot and D3cold
• Supports PCIe Power Management
• Serial Ports:
• 16C450/550/Extended 550 Compatible UARTs
• Supports RS232, RS485 & RS422 Modes
• Bi-directional Speeds from 50 bps to 16Mbps/Port
• Full Serial Modem Control
• Supports Hardware, Software Flow Control
• 5, 6, 7, 8 and 9-bit Serial Format Supported
• Even, Odd, None, Space & Mark Parity Supported
• Custom BAUD Rates Supported with External Clock or by Programming Internal PLL
• On Chip 256 Byte Depth FIFOs in Transmit, Receive Path of Each Serial Port
• Supports Remote Wake-up and Power Management Features
• Serial Port Transceiver Shutdown Supported
• Supports Slow IrDA on All Serial Ports

Software requirement

• Windows 7 32/64-bit
• Vista 32/64-bit
• Windows XP 32/64-bit
• Windows 2000
• Linux Kernel 2.6.11 & Above
• Mac 10.4 & Above
